Chain conveyor

【Motor Power】：3kw-5kw

【productive power】：Determined by specific production lines

【Discharge size】：Determined by specific production lines

【Supporting equipment】：Chain conveyor belt, belt conveyor belt, metal processing equipment, magnetic separator, eddy current separator, dust removal equipment, etc.

【Applicable materials】：Suitable for conveying various waste cars, motorcycles, bicycles, and various raw aluminum accessory materials

【The price of Chain conveyor】：Different models have different prices, please call for consultation

Telephone：13592521219

Product introduction
Working principle
Product advantage
Technical Parameter

01. Equipment

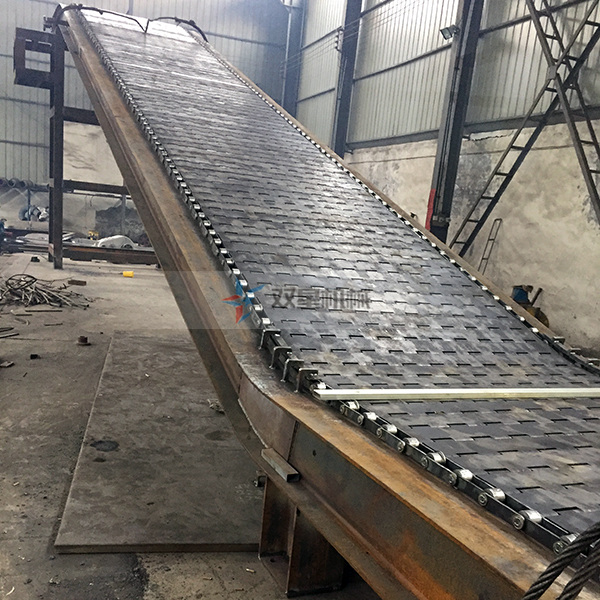

Chain plate conveyor is a specially designed supporting chain plate conveyor for metal crushers, scrap steel crushers, can crushers, waste crushers, and aluminum crushers by Double Star Machinery. The transportation of the double star chain plate conveyor is stable, and different width specifications of the chain plate conveyor can be selected according to the production site situation. Double star chain plate conveyor adheres to independent innovation and meets the needs of more customers. Chain conveyor, also known as forging conveyor belt, conveyor belt, chain conveyor, chain conveyor, conveyor transmission rack, assembly line, automated conveyor line, forging material conveying machinery.

02. Working principle

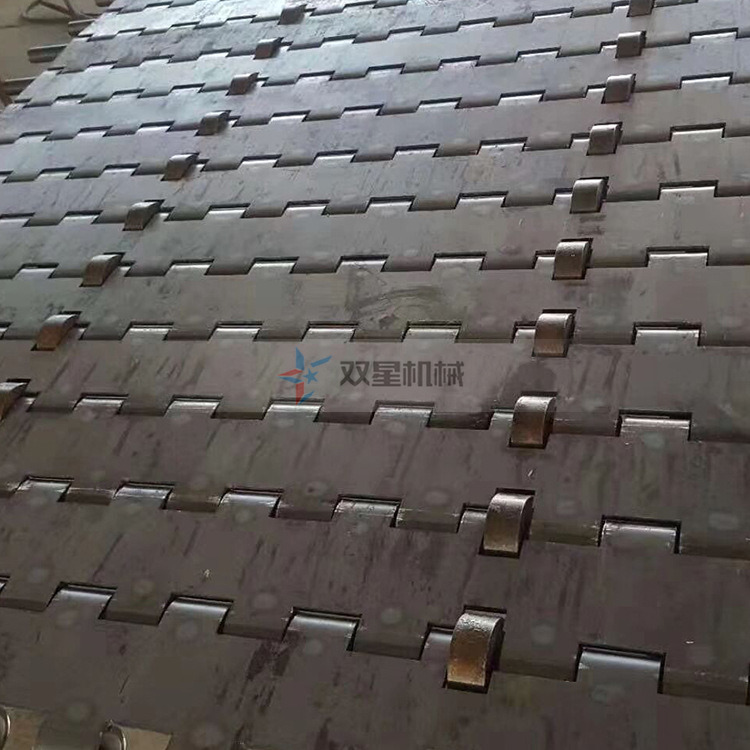

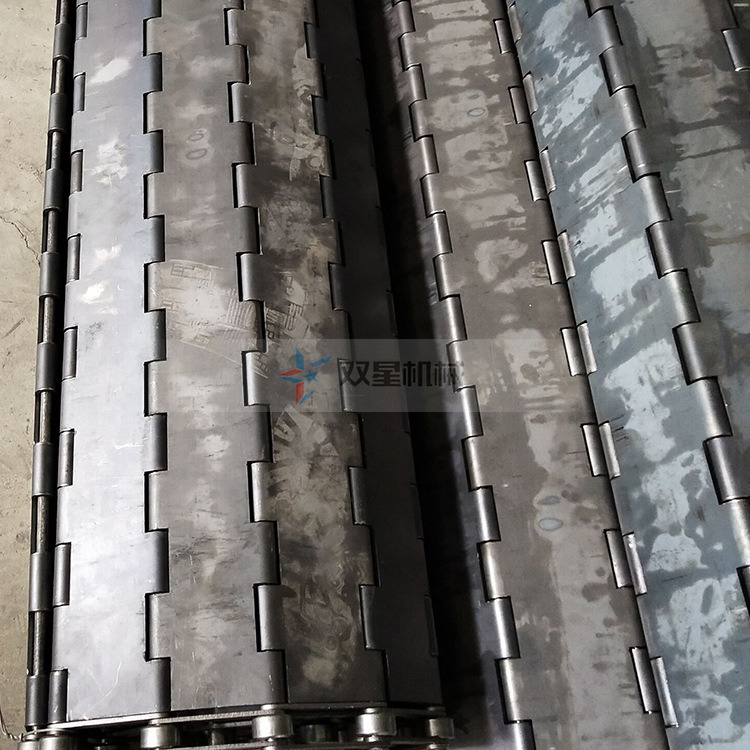

Chain plate conveyor is a conveying device that uses standard chain plates as the load-bearing surface and is powered by a motor reducer. Chain plate conveyor is composed of power unit (motor), transmission shaft, drum, tensioning device, sprocket, chain, bearing, lubricant, chain plate, etc. The two main parts of conveying animal feed are: the chain, which uses its cyclic motion to provide traction power; The metal plate serves as the carrier during the transportation process. Complete the work of material transportation. It has the characteristics of stable operation and convenient installation, and is common in the production of metal crushers.

03. Equipment advantages

1. The length, width, height, and speed of the chain conveyor are not limited by the site.

2. The weight, size, temperature, and shape of the transported object are not subject to subjective factors.

3. The operating speed and adjustable range of the conveyor belt.

4. Transportation form: straight line, climbing, turning, lifting, etc.

5. It can be selected according to the conveying materials and process requirements, and can meet the different processing needs of various industries.

04. Equipment price and model

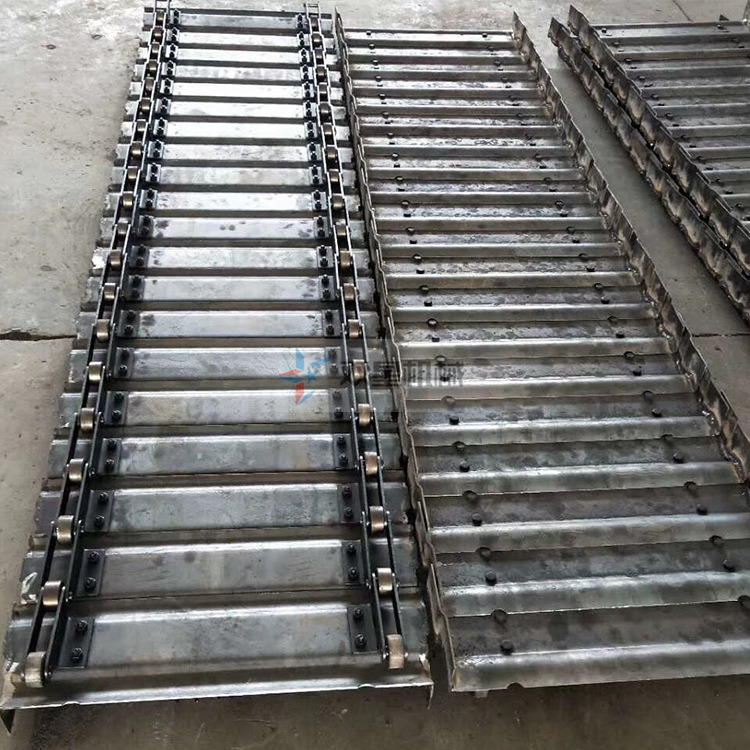

The chain conveyor is designed into hinge chain conveyor, flat top chain conveyor, channel steel partition chain conveyor, and multi piece chain conveyor based on the actual situation of materials and customer needs. The forging chain conveyor can be made into a horizontal direct conveyor, a lifting and climbing conveyor, and a turning conveyor. The length of the chain conveyor is customized according to customer needs, with an adjustable range of 0.025 meters to 60 meters per minute. The conveyor height is adjustable, usually within a range of 15 centimeters.
